Tables

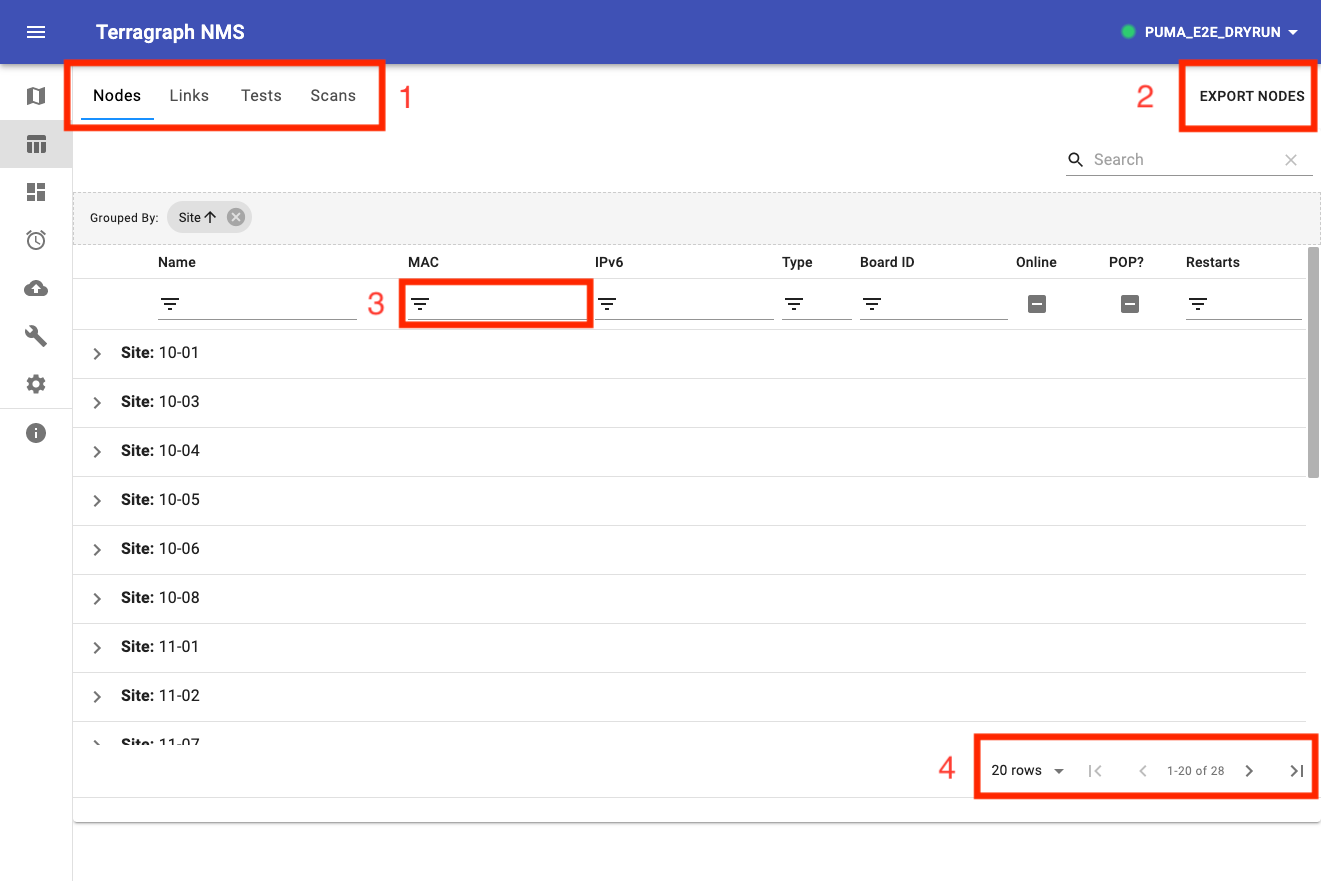

The tables page shows searchable and filterable information about nodes, sites, network tests, and network scans.

../_images/tables.png

  1. Select between the available table views.

  2. Export nodes to a .csv file.

  3. These text boxes can be used to filter the data shown in the table.

  4. Pagination controls to view more nodes if available.

Tests

From this page you can run network tests to analyze the health of links. Network tests run iperf on the nodes in the network while collecting the relevant statistics into Prometheus. Click “Schedule Network Test” to start a network test now or in the future.

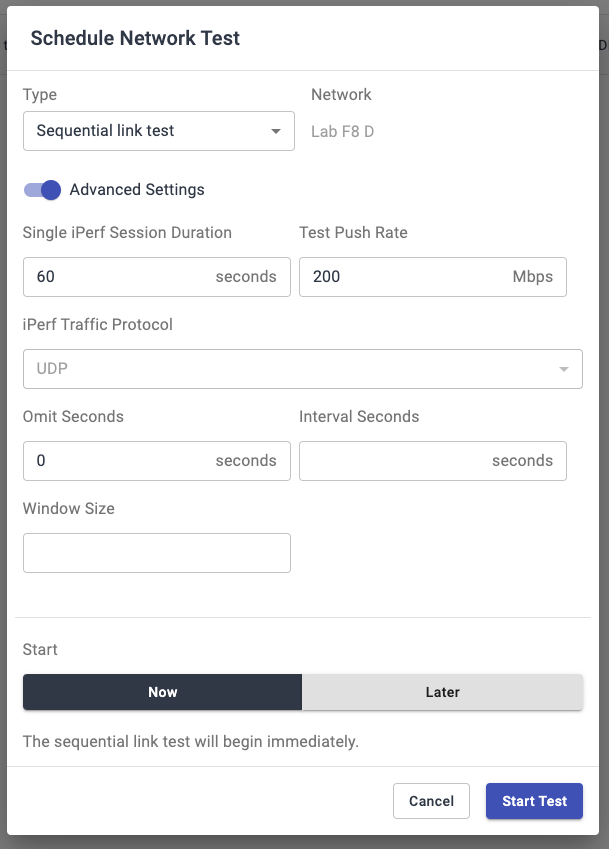

../_images/schedule_network_test.png

Configure options before running the network test.

Scans

From this page you can run network scans to determine interference on the network, identify potential links, and configure backup links. Click “Schedule Scan” to start a network scan now or in the future.

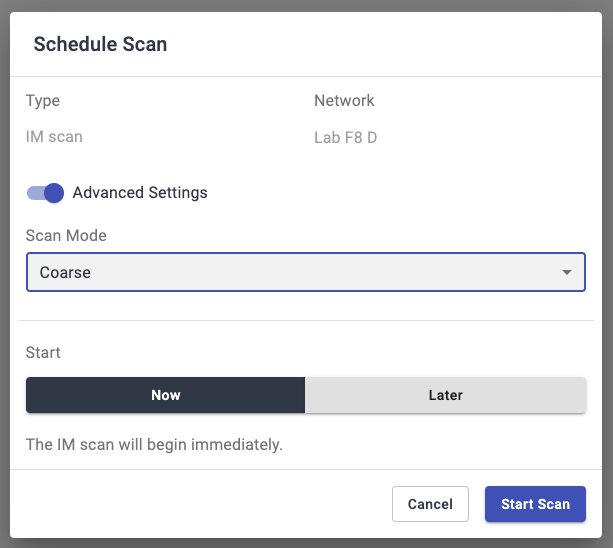

../_images/schedule_scan.png

Configure options before running the network scan.
